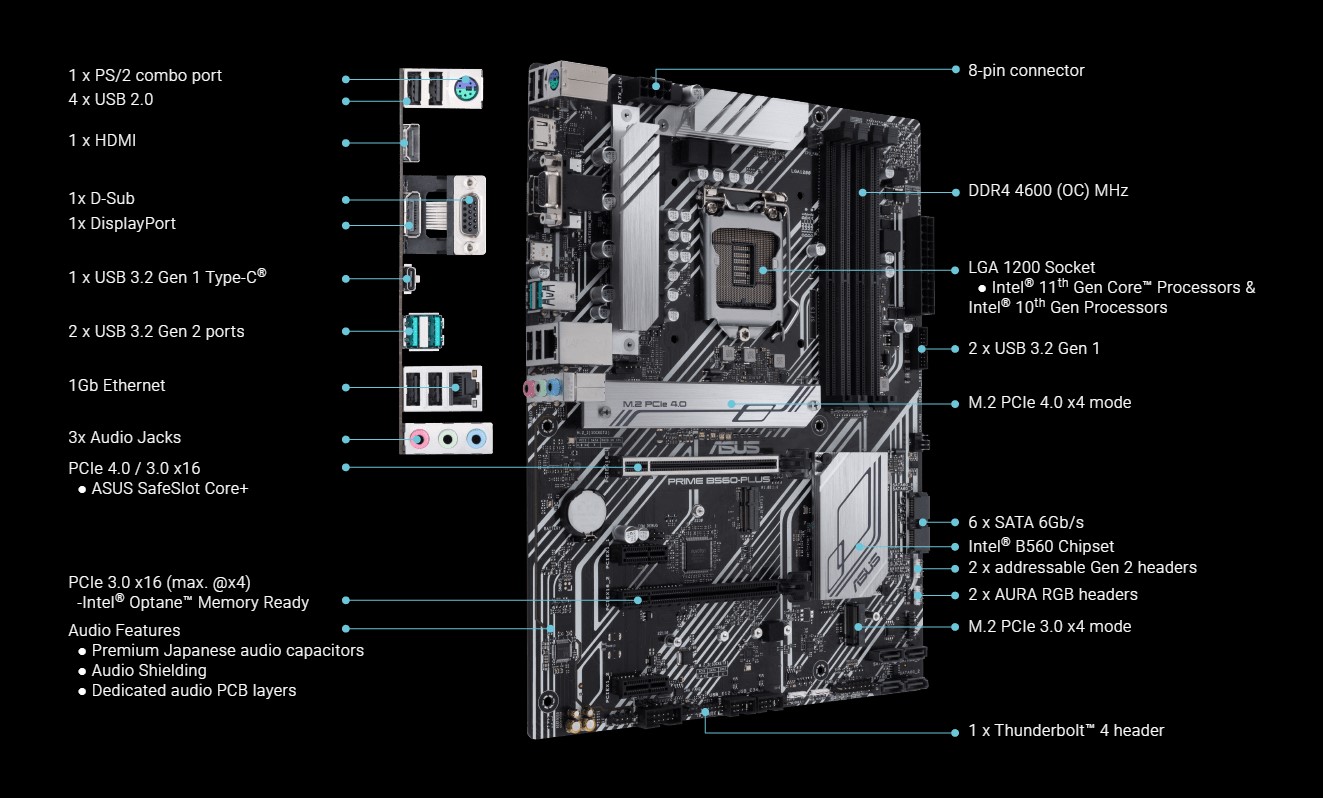

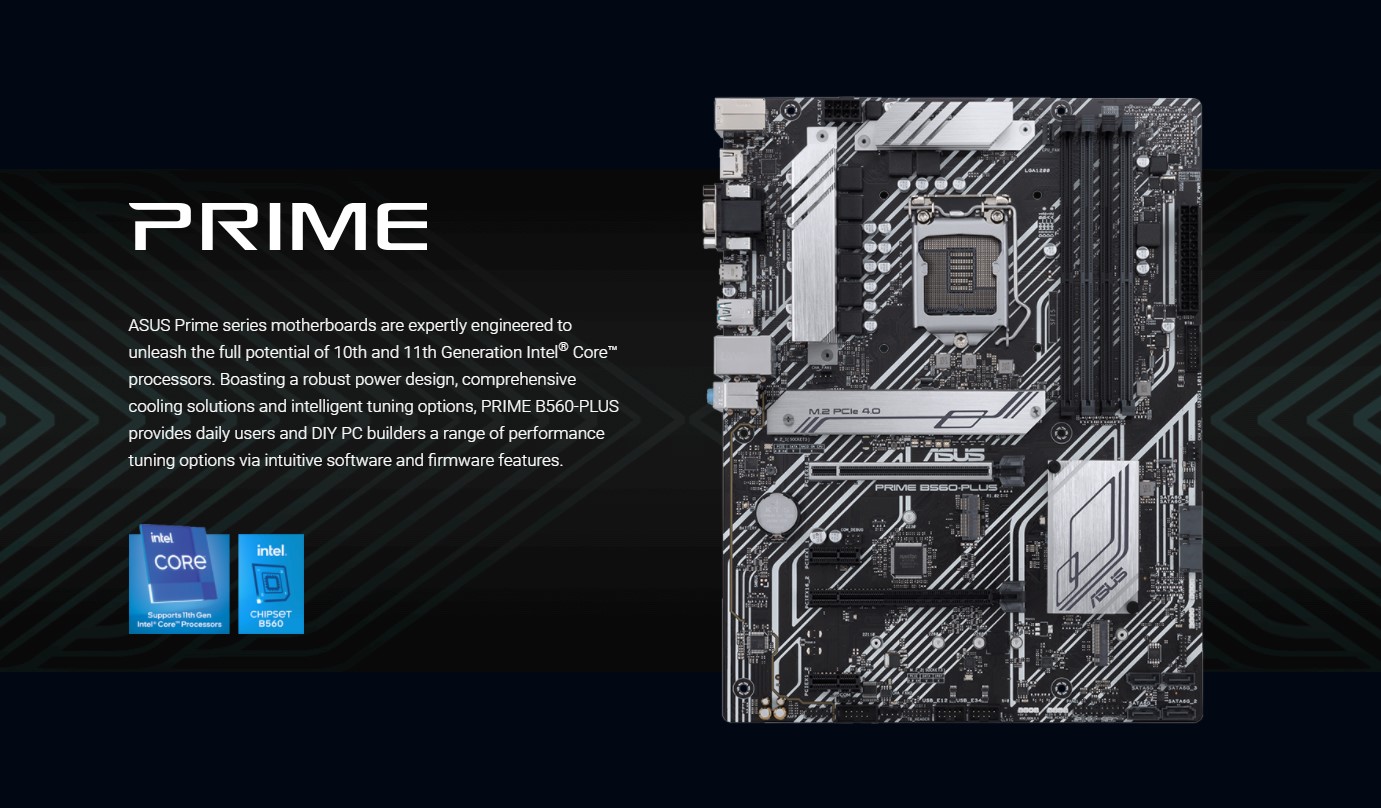

MB-ASUS PRIME B560-PLUS

Intel® 11^th &10^th Gen Processors

1 x PCIe 4.0/3.0 x16 slot*

- Intel® 11th processors support PCIe 4.0 x16

- Intel®10th processors support PCIe 3.0 x16

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

1 x Intel® I219-V 1Gb Ethernet
ASUS LANGuard

Fan and cooling-related

1 x 4-pin CPU Fan header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS jumper

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF out header

1 x 20-3pin System Panel header with Chassis intrude function

1 x SPI TPM header (14-1 pin)

1 x M.2 slot (key E)

1 x DP port

1 x HDMI port

1 x D-Sub port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

1 x Intel® I219-V 1Gb Ethernet port

4 x USB 2.0 ports (4 x Type-A)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1x USB 3.2 Gen 1 port (1 x USB Type-C®)

ASUS 5X PROTECTION III

- ASUS DIGI+VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design:

- ASUS Q-DIMM

- ASUS Q-Slot

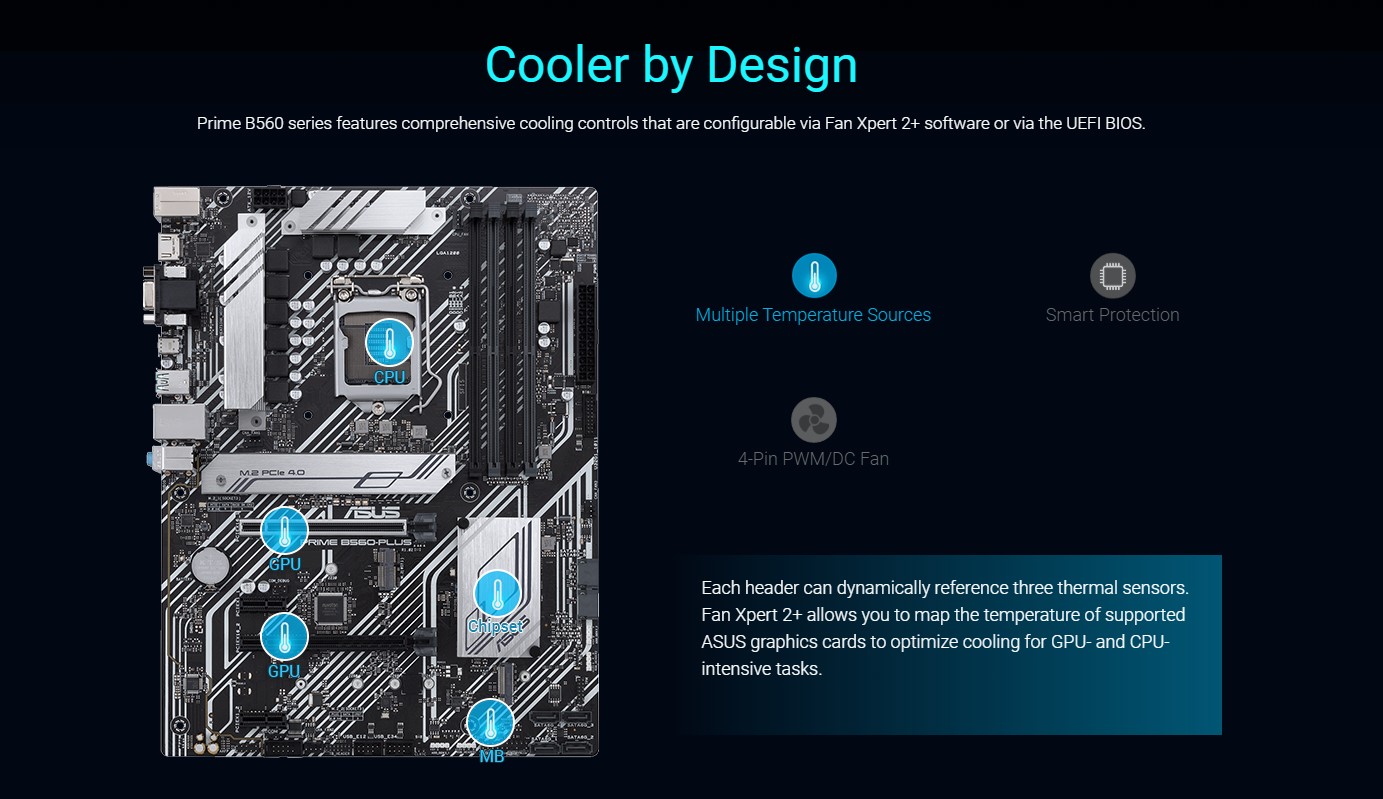

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- Box Headers

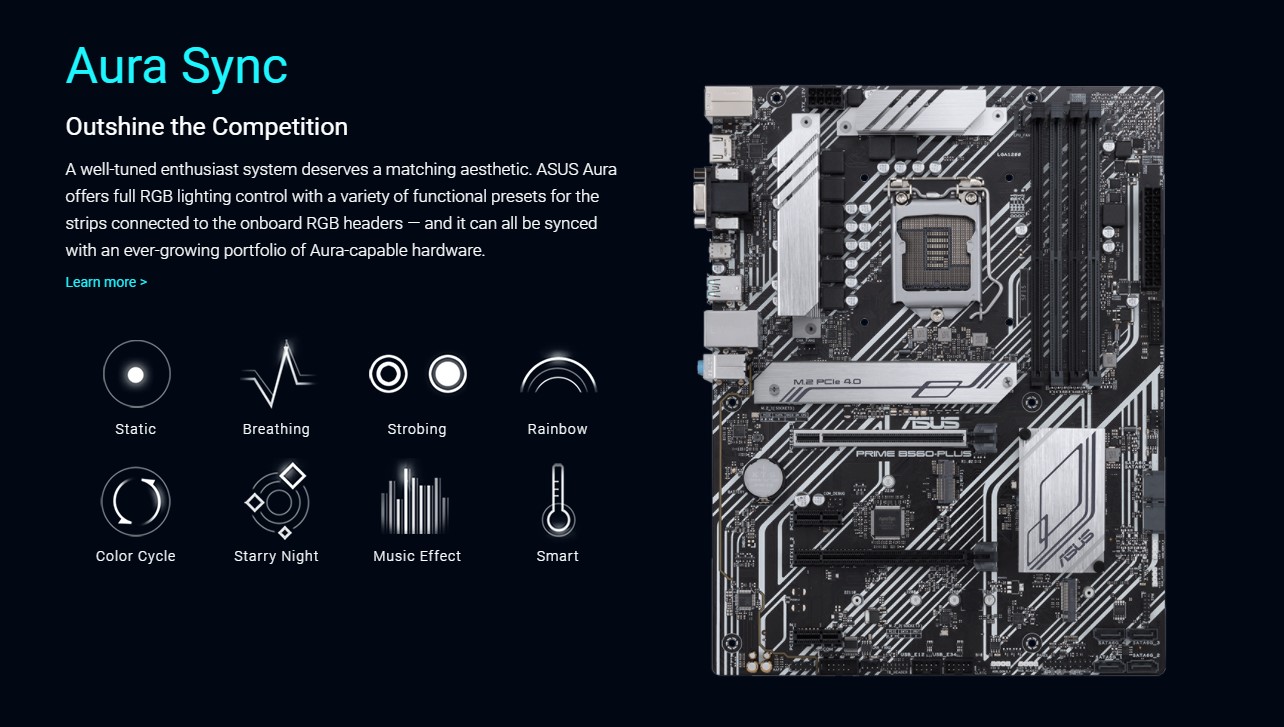

AURA SYNC

- AURA RGB headers

- Addressable Gen 2 RGB headers

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package

1 x IO Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Supporting DVD

Documentation
